Kussmaul Status Center, Dual Battery Display 091-189-2-12
Kussmaul
$217.60
Kussmaul Status Center, Dual Battery Display 091-189-2-12

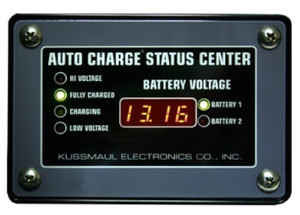

The Kussmaul Status Center, Dual Battery Display 091-189-2-12 is a universal dual indicator for vehicles with dual battery systems.
The indicator reads battery voltage, and indicates the condition of the battery via LED's: High Voltage, Fully Charged, Charging and Low Voltage, for both Battery 1 and Battery 2. In addition to the LED status indicators, a 3-digit indicator displays the battery voltage with an accuracy of 100 millivolts. The display automatically toggles between Battery 1 and Battery 2.
The unit is designed to be mounted on the outside of a vehicle to readily indicate the battery condition. The indicator fits Kussmaul standard indicator panel cut outs, and comes with a 3 year warranty.
Features:
- Display automatically toggles between battery 1 and battery 2
- LED's indicate status of battery condition
- 3 digit display shows battery voltage
- LED flashes when low or high voltage is reached
- Weatherproof enclosure
- 3 year warranty
Specifications:
| Input | 12 Vdc From Battery |
| Warranty | 3 Years |
| Weight | .25 Lbs |
| LED Voltage Set Points | High Voltage - 14.82 Vdc And Above, Fully Charged - 13.08 Vdc To 14.82 Vdc, Charging - 12.84 Vdc To 13.08 Vdc, No LED's On - 12.30 Vdc To 12.84 Vdc, Low Voltage - 12.30 Vdc And Below |
| Digital Display | Yes |
| DC Volts | Yes |
