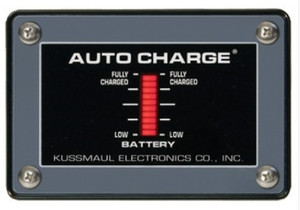

Kussmaul Single Bar Graph Display 091-199-001
The Kussmaul Single Bar Graph Display 091-199-001 should be located in a convenient place on the vehicle.
Indicator Installation:
1. Locate Indicator in a convenient place on the vehicle.
2. Place the template in position and center punch in 4 places.
3. Drill holes as shown.
4. Cut out square hole.
5. Connect wiring to charger in accordance with the instructions in the charger installation instructions.
6. Install as shown.
7. Insert (4) #8-32 screws supplied and tighten.
CAUTION: Do not over tighten because you will bend the plastic bezel and break the watertight seal
Specifications:
| Bargraph Type | Single |
| DC Volts | Yes |
