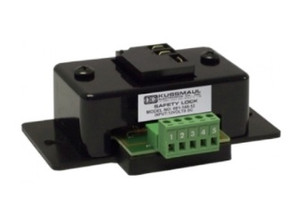

Kussmaul Safety Lock 3 091-155
Operating any one of these will cause the relays in the Kussmaul Safety Lock 3 091-155 to drop out and interrupt the ignition circuit to stop the engine.
The authorized operator need only insert the key, and turn on the ignition to operate the vehicle. With the key in the lock and turned on, the ignition circuit is completed as normal and the opening of the Safety Lock 3 relays have no effect on engine operation. This unit is for vehicles that require 3 independent relays for the vehicles ignition.
This simple, low cost controller bypasses the ignition switch when activated by the closure of a momentary switch. The operator may then remove the ignition key without shutting the engine down. Movement of the vehicle is prohibited by interlocking the Safety Lock 3 with a switch operated by the foot brake, a neutral safety switch on the gearshift or a parking brake operated switch.
Features:
Three Relay
Activated when ignition key removed
When activated, engine remains on and shuts down automatically if controls are manipulated in attempts to move vehicle
Safety Lock override/re-start when ignition key is inserted
30A relay contacts
3 year warranty
Specifications:
| Warranty | 3 Years |
| Weight | .5 Lbs |
| Relay Contacts | 3 Relays, Normally Open, 30 Amps |
