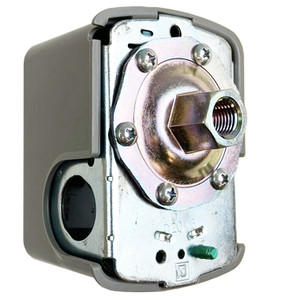

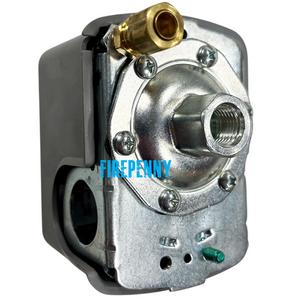

Kussmaul Condor USA Pressure Switch with Brass Coupler, 3X683
Product Specifications
Part Number: 11GAXA
Product Series/Type: MDR11
Pressure Setting: 100/125 PSI
Air Connection: 1/4" FEMALE NPT
Unloader Type: 1/4" STRAIGHT COMPRESSION (EVI)
Weight: 360.0 g
Series Specifications
Rated insulation voltage (Ui): 500 V
Motor switching capacity (AC 3) [Ue=240 V (1~)]: 4.0 kW
Motor switching capacity (UL 508, CSA 22.2) [Ue=240 V (1~) / Ue=120 V (1~)]: 3.0 HP / 2.0 HP
Electrical life (UL 508, CSA 22.2) [Ue=240 V DC; 2.7 A]: 0.5 HP
Electrical life (AC 3): > 1 x 10⁵ cycles
Mechanical life: > 5 x 10⁵ cycles
Max. electrical cycles per hour: 120
Max. mechanical cycles per hour: 600
Rated operational current Ie (EN 60947) [at 240 V AC]: 20 A
Rated operational current Ie (UL/CSA) [at 240 V AC]: 26 A
Bursting strength (Pz): > 35 bar
Permissible medium temperature (Air): -5...+80 °C
Permissible medium temperature (Water): +70 °C
Degree of protection (EN 60529): IP 44
Conductor cross-section (fine stranded cable 1 x / 2 x): 2.5 / 2.5 mm²
Conductor cross-section (rigid cable 1 x / 2 x): 2.5 / 2.5 mm²
