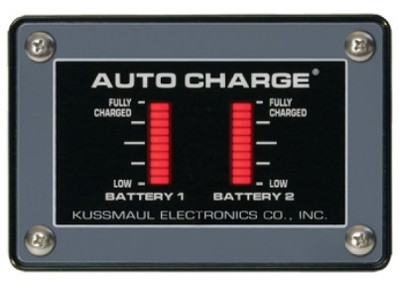

Kussmaul Dual Bar Graph Display 091-11-127
Kussmaul Dual Bar Graph Display for Auto Charge 11, Auto Charge11HO, Euro Charger II, Euro Charger II VHO.
INDICATOR INSTALLATION
- Locate the Indicator in a convenient place on the vehicle.
- Place the template in position and center punch in 4 places.
- Drill holes as shown.
- Cut out a square hole.
- Connect wiring to the charger in accordance with the instructions in the charger installation instructions.
- Install as shown.
- Insert (4) #8-32 screws supplied and tighten.
CAUTION: Do not over-tighten because you will bend the plastic bezel and break the watertight seal
