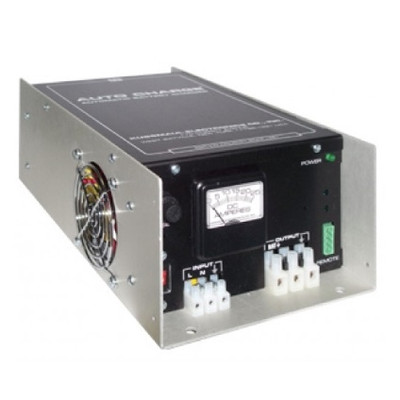

Kussmaul Auto Charge 12 HO-DV 091-170-DV-12
The Kussmaul Auto Charge 12 HO-DV 091-170-DV-12 is a high output fully automatic battery charger for vehicles with a single battery system.
This charger has an input voltage selector switch to change from 120 Vac to 230 Vac, which is ideally suited for vehicles used in localities that may only have 230 Vac. A patented "Sample & Hold" circuit is utilized to detect the actual battery voltage. This eliminates the error due to the current flowing in the charging wires and assures that the battery is charged to the precise float voltage. A current limiter prevents overloading the charger when charging a deeply discharged battery or driving large parasitic loads. The charger is ruggedly constructed to assure reliable operation when mounted in a vehicle.
Features:
- 20A, 12V charge rating
- Selector switch on front panel for 120 or 240V, 50-60 hz. input (DV)
- Automatic operation regulates output to a single battery bank
- A patented built in sense circuit, checks battery voltage 120 times per second, to compensate for voltage drop in charging wires providing quick recharge, with no overcharge
- Front panel amp meter indicates output current. Optional vehicle side mount indicator
- Designed for rigors of emergency vehicle use; heavy duty aluminum case with protective front panel plate and wire strain relief
- 3 year warranty
Specifications:
Charger With Battery Bank | Single |
Charger, Output Amperage | 20 |
Battery Saver Only | No |
Chargers With Parasitic Load Compensation | No |
Charger With Remote Display Included | Yes |
Charger, Output Voltage VDC | 12 |
Charger, Input Voltage VAC | 120 Or 240 |
Charger- Hz | 50/60 |
Charger, Low Profile Design | No |
Charging Profile | Float |
Input Fuse | 8 Amps, Fast Acting |
Input | 120 / 240 Vac, 50/60 Hz, 4 / 2 Amps Max |
Output | 12 Vdc, 20 Amps |
Output Fuse | 40 Amps |
Warranty | 3 Years |
Weight | 19 Lbs |
Charge Indicator | 0-25 Amps |
EV Series | No |
